ex18_cascadia_multivariable

This high-taper example repeats ex14_cascadia_multivariable, using 0.49 on every side except the beginning of the z axis, which remains zero.

This example merges full-volume Vp, Vs, and density fields from SVI EQTOMO and WUS324 Cascadia. The SVI model is the regional primary and WUS324 is its full-volume secondary and final fallback.

SVI_EQTOMO?Vp,Vs,Density WUS324?Vp,Vs,Density - - \
    cosine/cosine/cosine 0.49/0.49/0.49/0.49/0/0.49
WUS324?Vp,Vs,Density - - - - -

The beginning-z taper is zero and the ending-z taper is 0.2. Source modifiers standardize Vp and Vs as km/s and density as g/cm3; WUS324 density is multiplied by 0.001 to convert from kg/m3. -Fvp,vs,density assigns the final variable names.

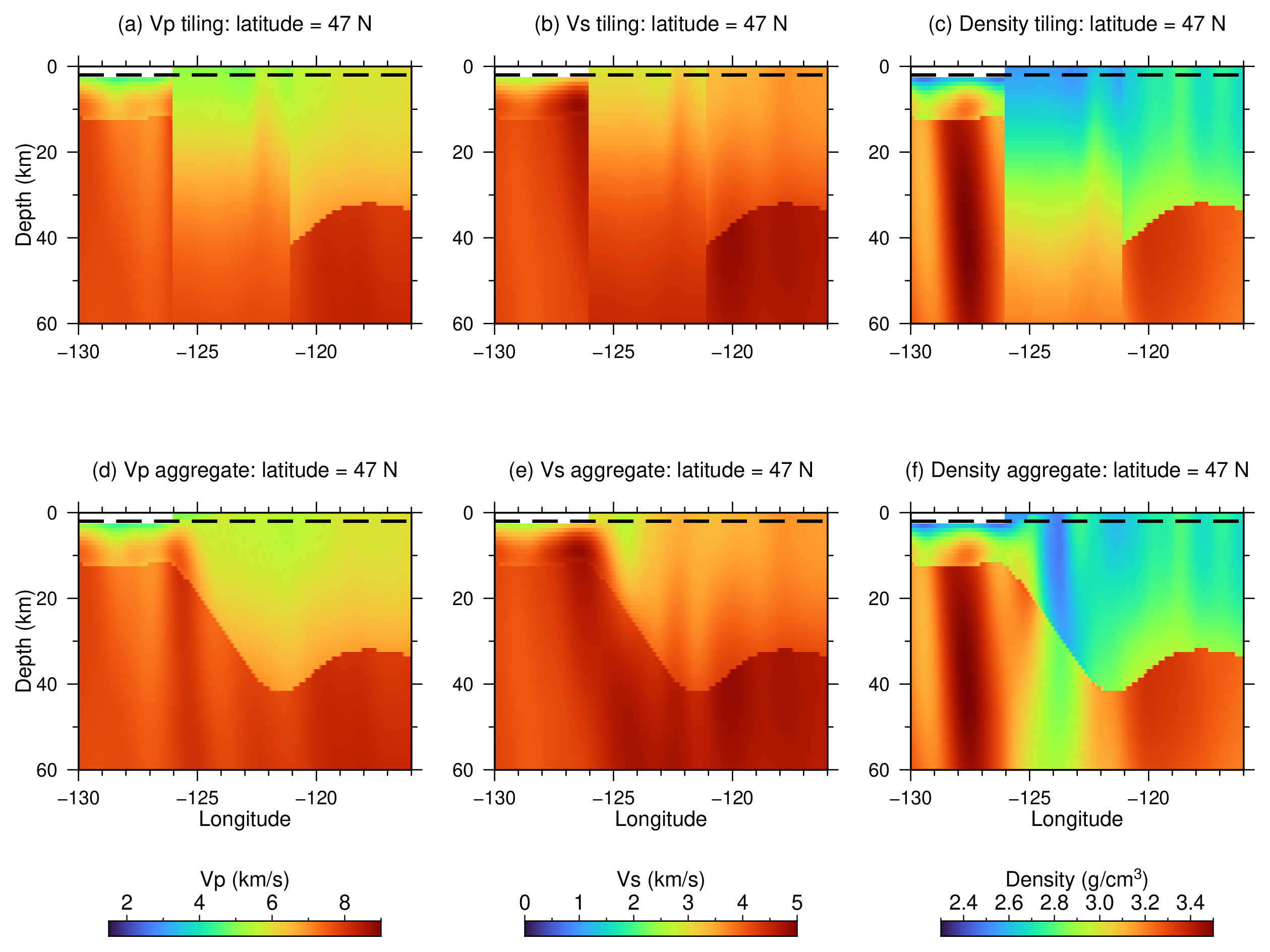

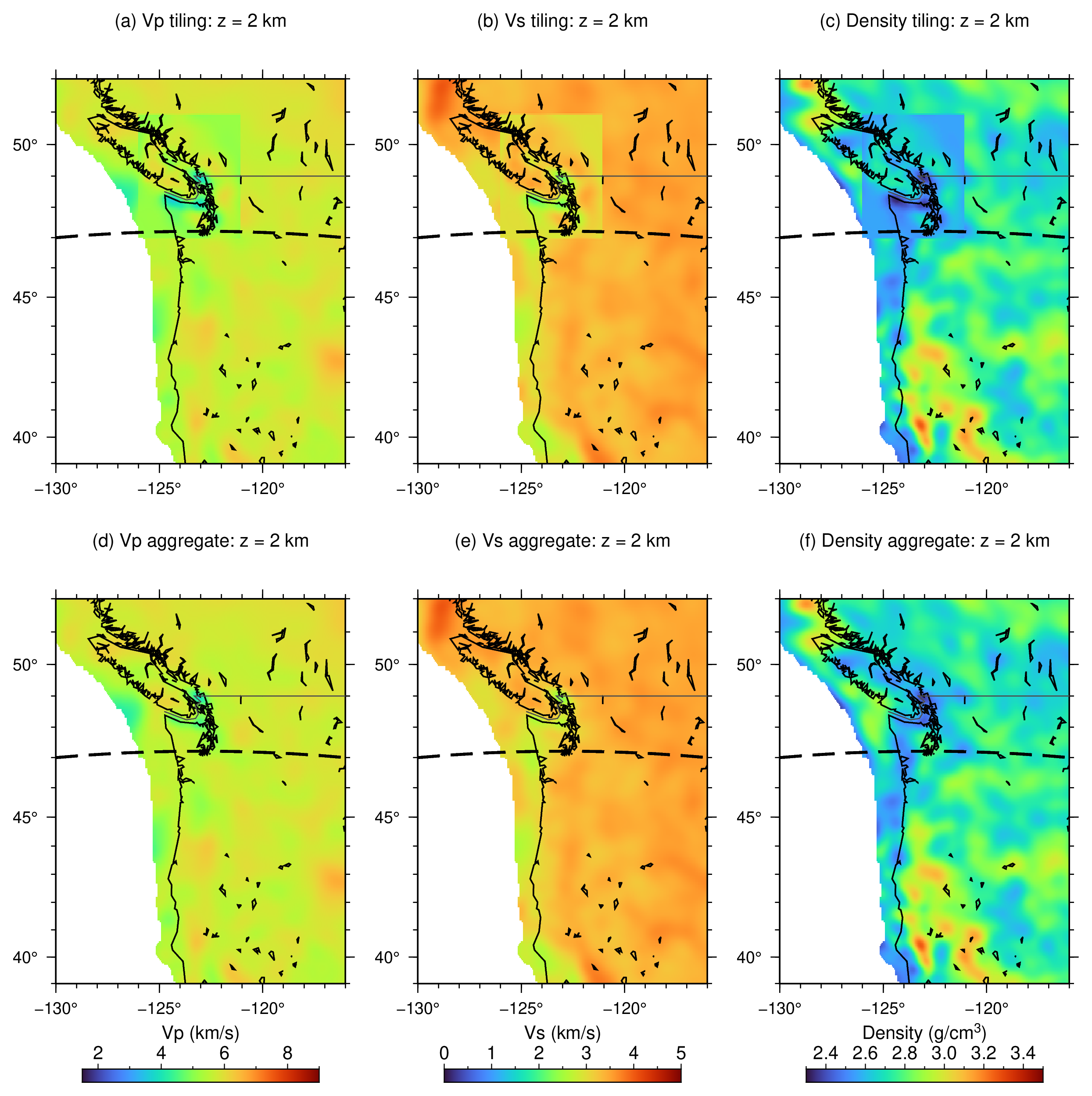

The horizontal and vertical figures each compare first-availability tiling with aggregate merging for all three parameters. Horizontal sections are at z = 2 km and vertical sections at latitude = 47 N. Dashed lines connect the two section locations.

Run:

./ex18_cascadia_multivariable.sh

The script checks all output names and unit attributes and verifies that every field changes under weighted merging in both views. It creates:

  • ex18_cascadia_multivariable_horizontal.png and ex18_cascadia_multivariable_horizontal.pdf

  • ex18_cascadia_multivariable_vertical.png and ex18_cascadia_multivariable_vertical.pdf
