ex05_multivariable_netcdf
This example merges three variables from two multiparameter three-dimensional NetCDF models. The source models use different names for equivalent fields:
model1.nc?vp,vs,den model2.nc?p,s,d isotoxal_star.txt - cosine/cosine/cosine 0.3
model2.nc?p,s,d - - - - -
The variables in both selectors are listed in corresponding order. The option
-Fvp,vs,rho assigns the final output names:
vp <- vp, p
vs <- vs, s
rho <- den, d
Model 1 occupies 20/80 along x, y, and z, while Model 2 and the output occupy
the full 0/100 cube. Its horizontal support is a four-pointed isotoxal star
with outer points at the 20/80 bounds, and its vertical support spans
z = 20/80 km. All coordinates are in kilometers. A symmetric cosine window
with a taper ratio of 0.3 merges each Model 1 field into its Model 2
equivalent. The final mergefile record tiles Model 2 outside the primary
support.
All three output fields use the same three-dimensional merging weight. The
-W option includes it as the fixed variable weight, with the long name
merging weight and units of 1. The script also uses -W+o to create a
NetCDF file containing only the coordinates and weight.

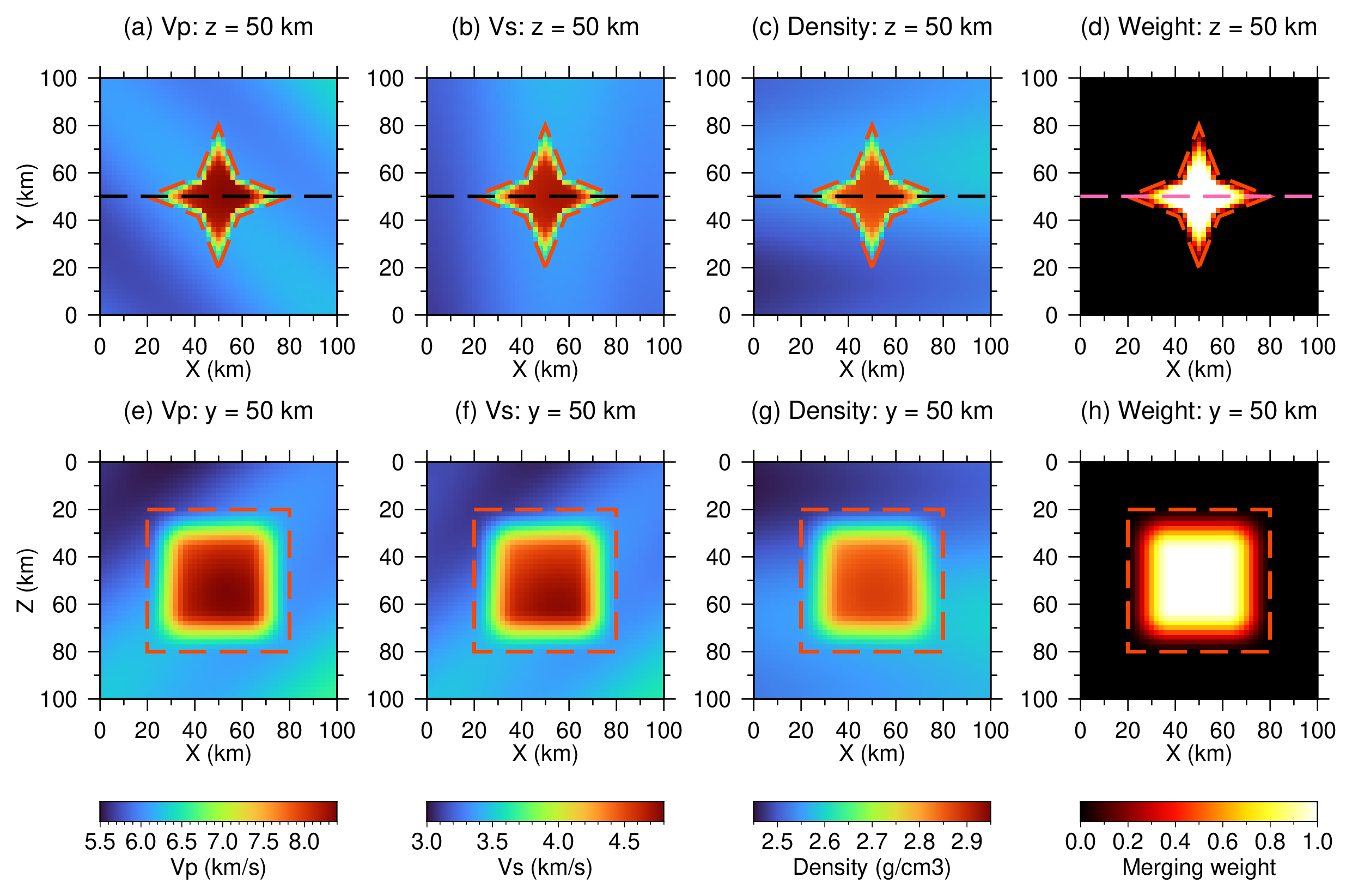

Panels (a-d) show horizontal slices at z = 50 km. Panels (e-h) show vertical
sections along y = 50 km. The dashed orange outlines mark the isotoxal-star
and vertical supports, and the dashed black/pink line marks the location of the
vertical sections.
Run:
./ex05_multivariable_netcdf.sh
The script verifies the output variable names, units, weight metadata, and
weight-only output. It also reconstructs every plotted field from its primary,
secondary, and shared weight. The script creates
ex05_multivariable_netcdf.png and ex05_multivariable_netcdf.pdf.
