ex18_cascadia_interpolation
This high-taper example repeats ex14_cascadia_interpolation with taper
ratios of 0.49.
This example repeats the SVI EQTOMO, Cascadia ANT+RF, and WUS324 comparison
from ex17_cascadia_models, but uses -Hl to fill all strictly internal gaps
with linear interpolation before tiling or merging.
The mergefile is:
SVI_EQTOMO WUS324 - cosine/cosine 0.49
Cascadia_ANT+RF WUS324 - cosine/cosine 0.49
WUS324 - - - -

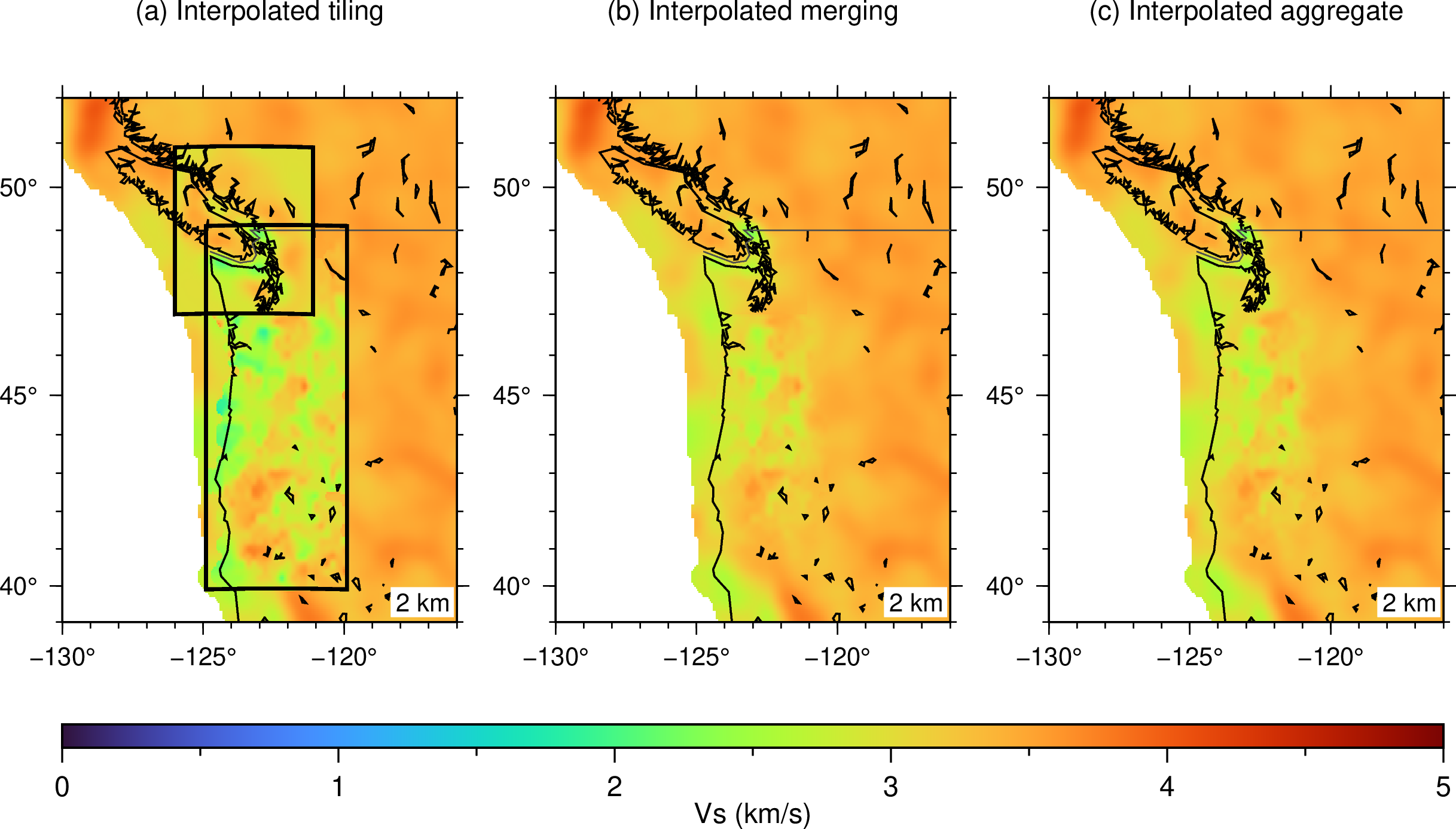

Panel (a) shows first-availability tiling after interpolation, panel (b) shows
regular symmetric cosine merging, and panel (c) shows aggregate merging. The
two primary domains are outlined only in panel (a). The -P option fills any
primary values that remain missing after interpolation from WUS324.
Run:
./ex18_cascadia_interpolation.sh
The script creates ex18_cascadia_interpolation.png and
ex18_cascadia_interpolation.pdf.
