ex01_clobber

This example compares the four merge2d clobber modes for two directly listed grids:

  • -Cf retains the first value and is the default.

  • -Co retains the last value.

  • -Cl retains the lowest value.

  • -Cu retains the highest value.

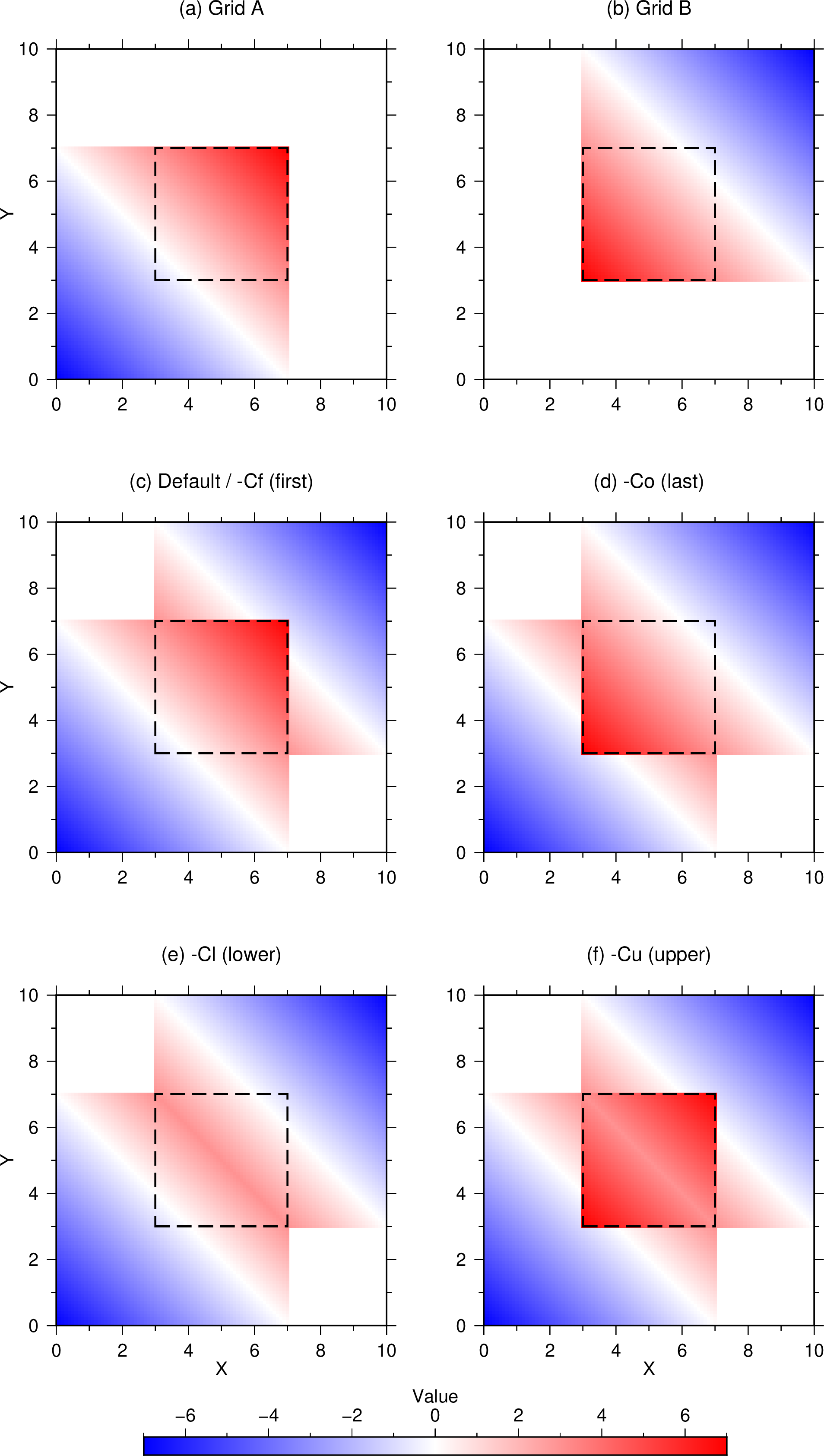

Grid A and Grid B overlap within -R3/7/3/7, shown by the dashed square. Outside the overlap, each mode retains whichever input is available. Areas not covered by either grid remain undefined.

Run:

./ex01_clobber.sh

The script verifies that the default result is identical to explicit -Cf and creates ex01_clobber.png and ex01_clobber.pdf.

Figures

ex01_clobber
