ex08_gap_methods

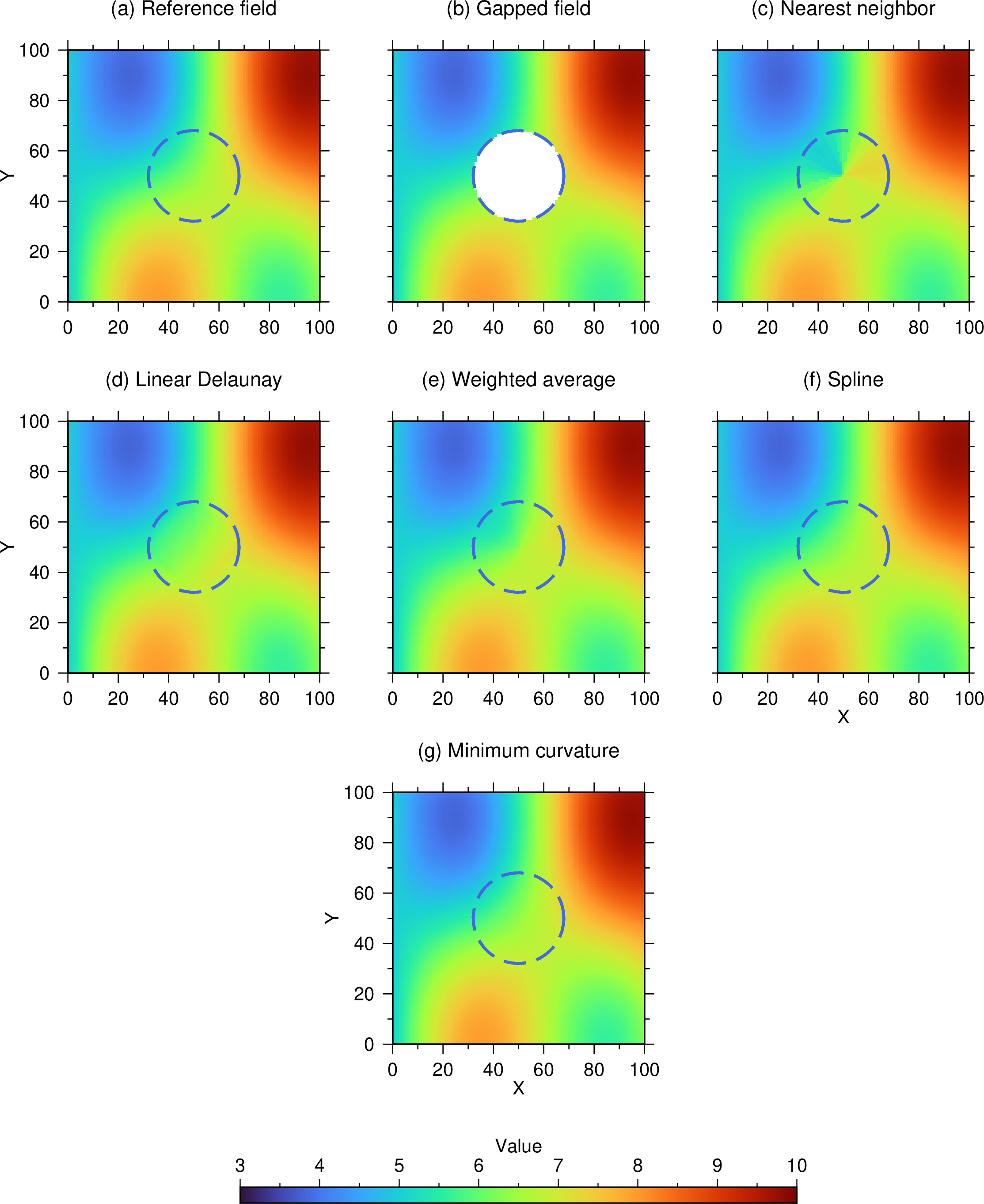

This example compares the five interpolation methods available through the
merge2d -H option. A circular region with radius 18 grid nodes is removed
from a smooth reference field before each reconstruction. The reference and
gapped input are shown before the five results. The dashed blue circle marks
the original gap.
The mergefile contains a single input record:
gapped.nc - - - -
The five reconstructions use:
gmt merge2d gap.merge2d -R0/100/0/100 -I1 -Hn -Gnearest.nc
gmt merge2d gap.merge2d -R0/100/0/100 -I1 -Hl -Glinear.nc
gmt merge2d gap.merge2d -R0/100/0/100 -I1 -Ha30/8 -Gaverage.nc
gmt merge2d gap.merge2d -R0/100/0/100 -I1 -Hs0.25 -Gspline.nc
gmt merge2d gap.merge2d -R0/100/0/100 -I1 -Hm0.25 -Gminimum_curvature.nc
-Hn uses nearest-neighbor values, while -Hl interpolates linearly over a
Delaunay triangulation. For -Ha30/8, 30 is the search radius in grid nodes
and 8 is the number of averaging sectors. The spline and minimum-curvature
methods both use a tension of 0.25. A bare -H is equivalent to -Hl.
Only nodes inside the enclosed gap are replaced. Every original data node is preserved. Gaps connected to an input-grid edge are not filled.
Run:
./ex08_gap_methods.sh
The script verifies that every method fills the circular gap, preserves the
original data, and produces a distinct reconstruction. It creates
ex08_gap_methods.png and ex08_gap_methods.pdf.
