ex04_wus324

This example modifies the WUS324 Cascadia model, which already represents an irregular land surface and seafloor. It compares removal of topography, bathymetry, and both before replacing the complete original surface with GMT Earth relief.

The script uses the cached one-arc-minute Cascadia crop of GMT’s @earth_relief_01m_g dataset. If unavailable, the relief is downloaded once and reduced to longitude/latitude = -130/-116/39/52 before any 3-D operation begins. The example itself is limited to -126/-121/42/50 and the native WUS324 horizontal spacing of 0.125 degrees.

WUS324 stores depth in kilometers, positive downward. The relief modifier +z-0.001+Zkm converts positive-up meters to the model convention before sampling.

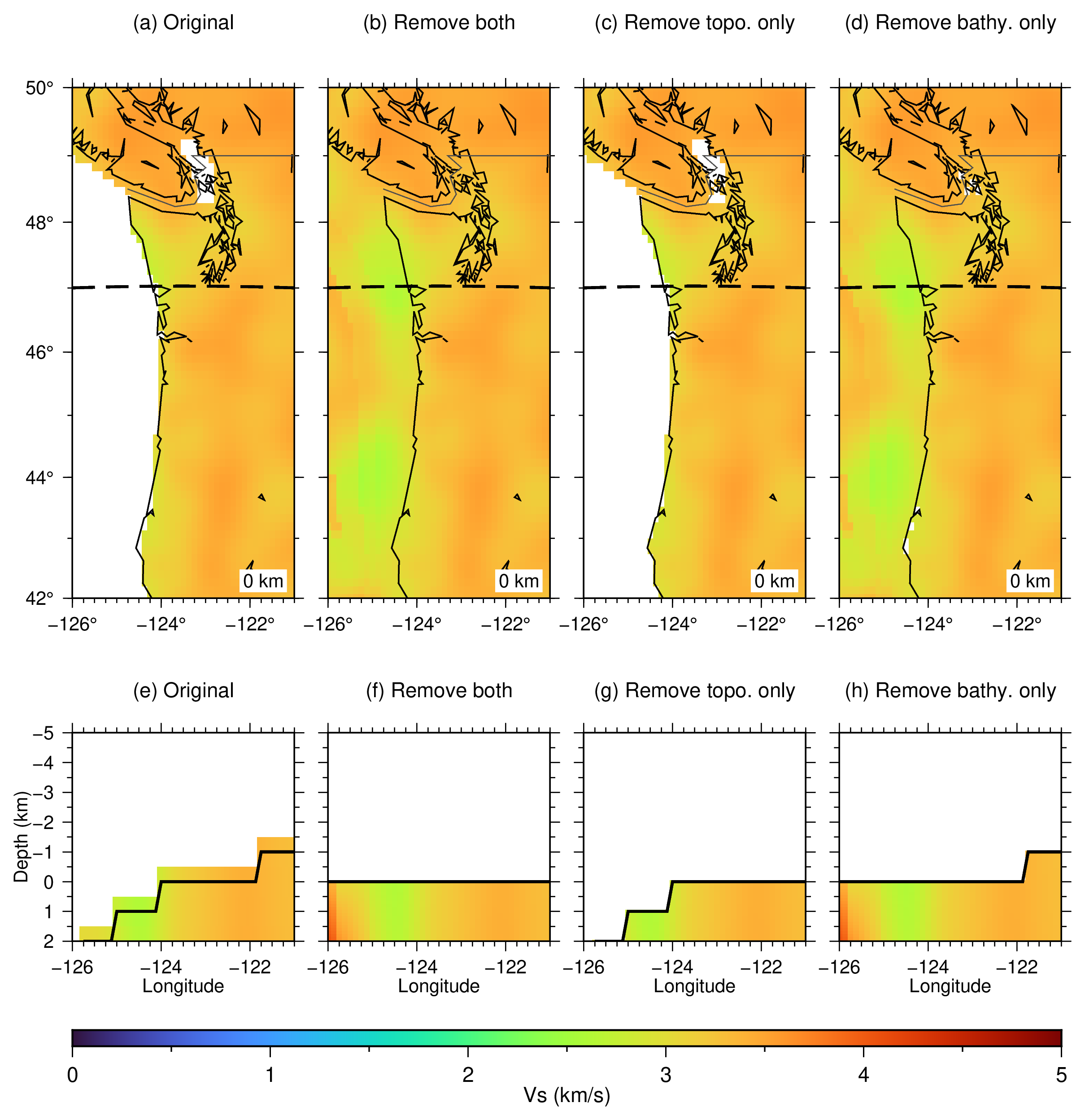

The removal figure compares:

  • the original topography and bathymetry

  • -Or, which removes both

  • -Or+t, which removes topography and retains ocean columns

  • -Or+b, which removes bathymetry and retains land topography

The bathymetry-only output uses -T-5/2/0.1 so its vertical axis retains the original land material above sea level as well as the model below it.

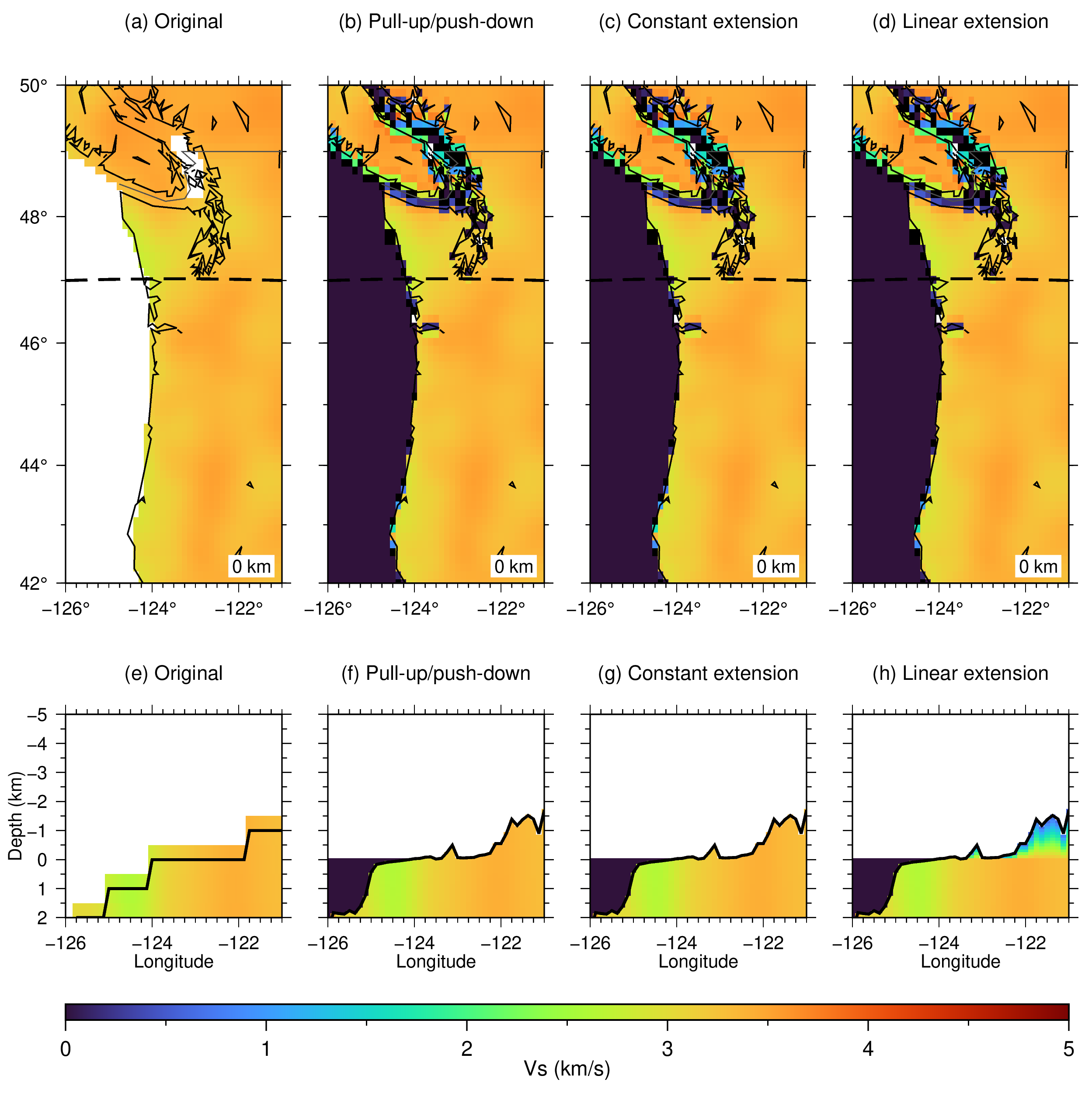

The methods figure compares the original model with -Ox -Mp, -Ox -Me, and -Ox -Ml to Vs = 0.5 km/s at the new land surface. WUS324 represents its original water columns with NaN, which appears white in the original cross section. Consequently, model-priority classification (-Cm) cannot identify those columns from the Vs = 0 water signature and would classify them as land wherever finite material occurs below the seafloor. The replacement runs deliberately retain the default GMT shoreline classification instead. Option -WVs/0+t0.01 then assigns Vs = 0 km/s to the newly constructed water columns, which appear dark blue and demonstrate that topobath can impose physically appropriate water values even when the source model stores water as missing data. Maps show zero depth, and sections follow latitude = 47 N.

Run:

./ex04_wus324.sh

Intermediate NetCDF models are removed when the script exits. The script creates:

  • ex04_wus324_flattening.png and ex04_wus324_flattening.pdf

  • ex04_wus324_methods.png and ex04_wus324_methods.pdf

Figures

ex04_wus324 ex04_wus324
