ex11_cascadia_slices

This example adds two-dimensional von Karman heterogeneities to 2 km shear-wave velocity slices from five Cascadia models: Cascadia ANT+RF, PNW10-S, SVI EQTOMO, WUS324 Cascadia, and Cascadia v1.6.

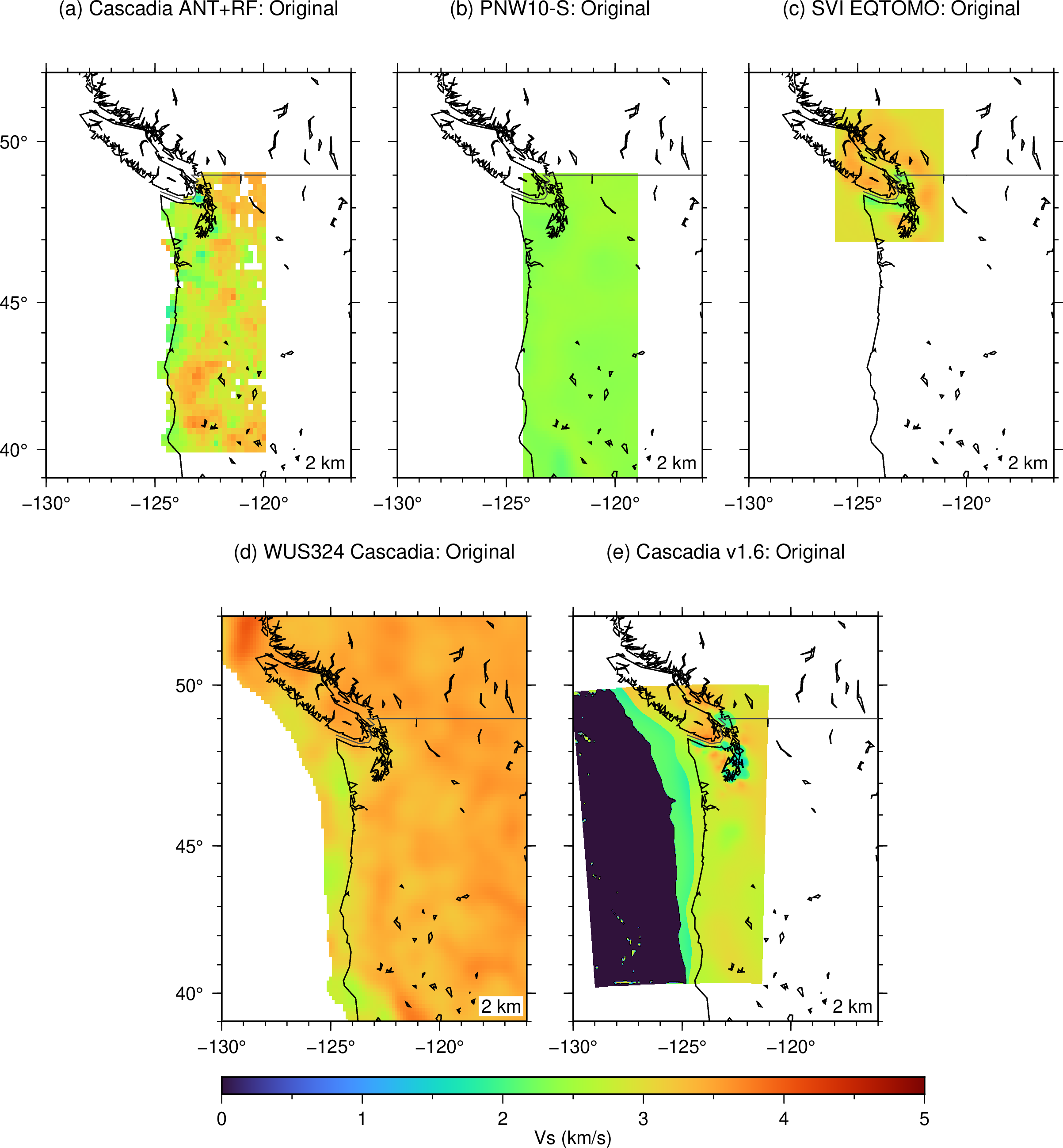

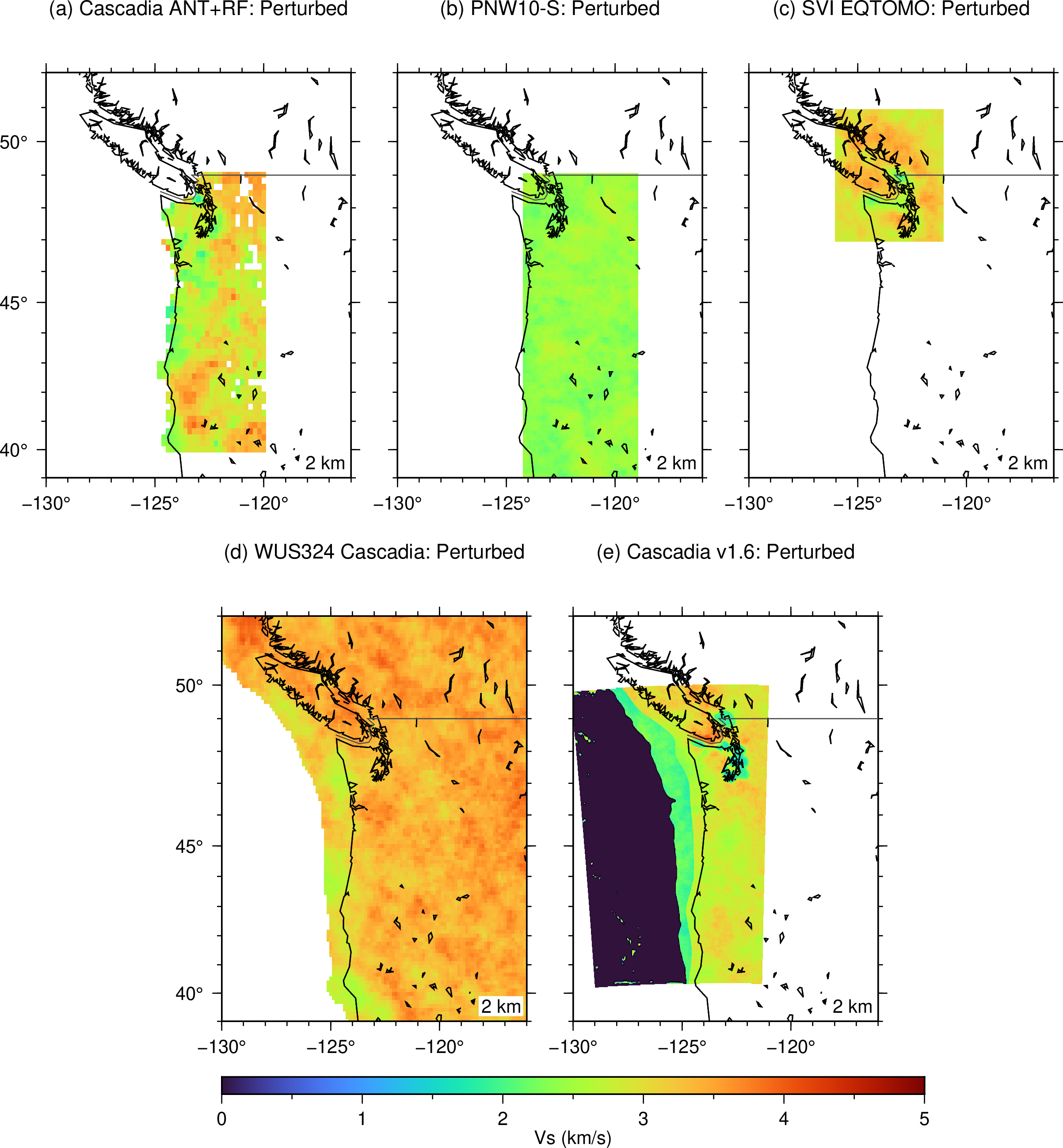

Each model uses a standard deviation of 0.04, geographic correlation lengths of 0.5/0.3, Hurst exponent 0.3, and a distinct seed. Separate figures show the five original and five perturbed slices on a common velocity color scale. Both figures use the same Cascadia region and Mercator projection so the maps retain their geographic proportions. Plain map frames, coastlines, and 2 km labels follow the style of the other Cascadia examples. The input slices must first be cached with the shared Cascadia data preparation script.

Run:

./ex11_cascadia_slices.sh

The script creates:

  • ex11_cascadia_slices_original.png

  • ex11_cascadia_slices_original.pdf

  • ex11_cascadia_slices_perturbed.png

  • ex11_cascadia_slices_perturbed.pdf

Figures

ex11_cascadia_slices ex11_cascadia_slices
