ex09_multiple_parameters

This example applies independent heterogeneities to the vp, vs, and rho variables of a multiparameter NetCDF grid. Parameter-specific standard deviations and x/y correlation lengths override shared defaults:

• vp: 0.025 and 12/8

• vs: 0.05 and 7/4

• rho: 0.015 and 4/3

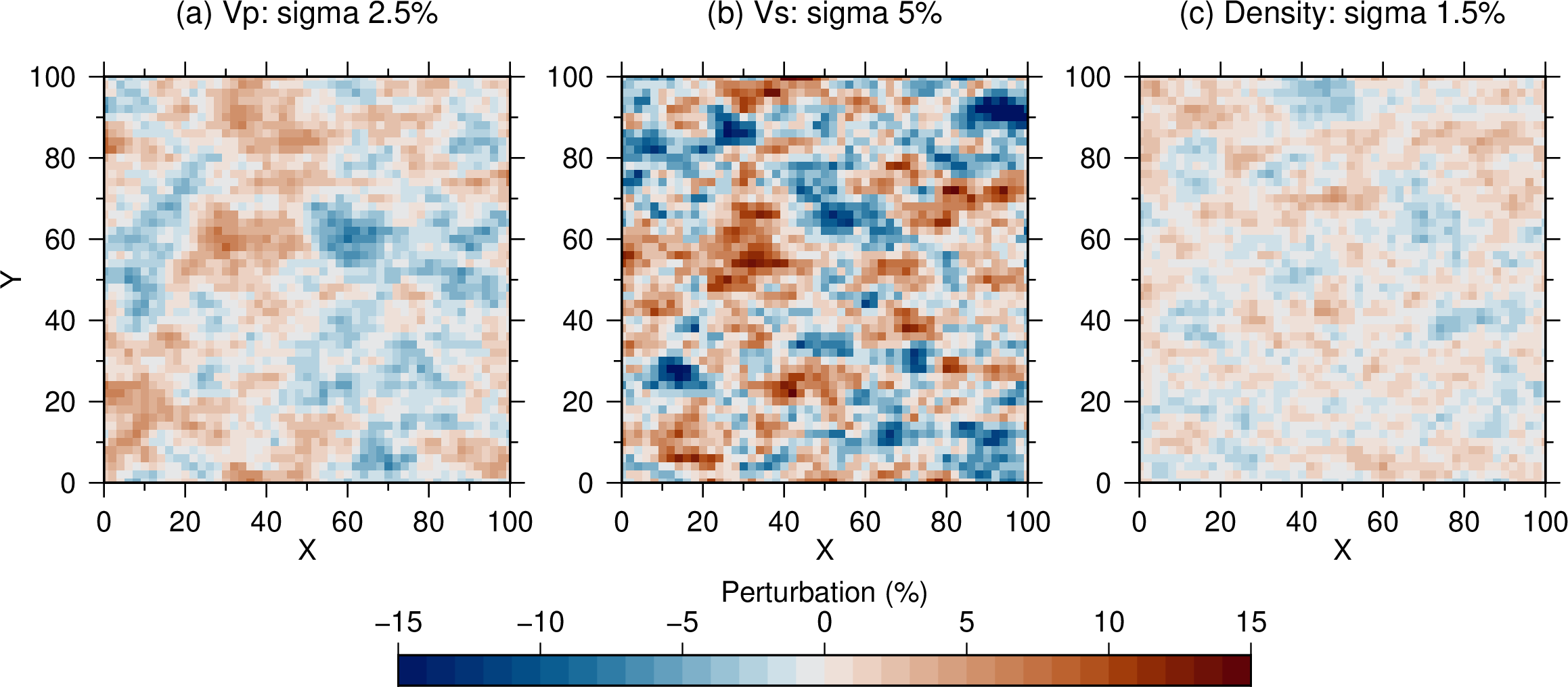

The +i seed modifier creates independent fields. The panels show the relative perturbation of each variable in percent. This example requires ncgen.

Run:

./ex09_multiple_parameters.sh

The script creates ex09_multiple_parameters.png and ex09_multiple_parameters.pdf.

Figures

Downloads

• ex09_multiple_parameters.sh

• ex09_multiple_parameters.pdf
