ex08_many_series
This example merges seven constant-valued primary series and one full-domain
secondary. Every series uses a spacing of 0.1, a cosine window, and taper
ratios of 0.3/0.3.
Series |
Domain |
Value |
Paired secondary |
|---|---|---|---|
|
70/95 |
8 |
|
|
65/75 |
7 |
|
|
55/100 |
6 |
|
|
15/35 |
5 |
|
|
37/53 |
4 |
|
|
5/20 |
3 |
|
|
0/45 |
2 |
|
|
0/100 |
1 |
none |
The mergefile is ordered as follows:
P1 P3 - cosine 0.3/0.3
P2 P3 - cosine 0.3/0.3
P3 secondary - cosine 0.3/0.3
P4 P7 - cosine 0.3/0.3
P5 secondary - cosine 0.3/0.3
P6 P7 - cosine 0.3/0.3
P7 secondary - cosine 0.3/0.3
secondary - - - -
The - support placeholders make each window use the complete domain of its
primary series.
This creates three peer overlap groups: P1 and P2 use P3, P4 and
P6 use P7, and P5 and P7 use secondary. A shared secondary may
also appear later as a primary, but it then belongs to a lower-priority
layer and does not enter the earlier group as another primary.
Without -A, the first applicable record controls each overlap. With -A,
the weights of peer primaries are normalized within each shaded overlap.
The final unpaired secondary record fills any locations left by the earlier
records.
Run:
./ex08_many_series.sh

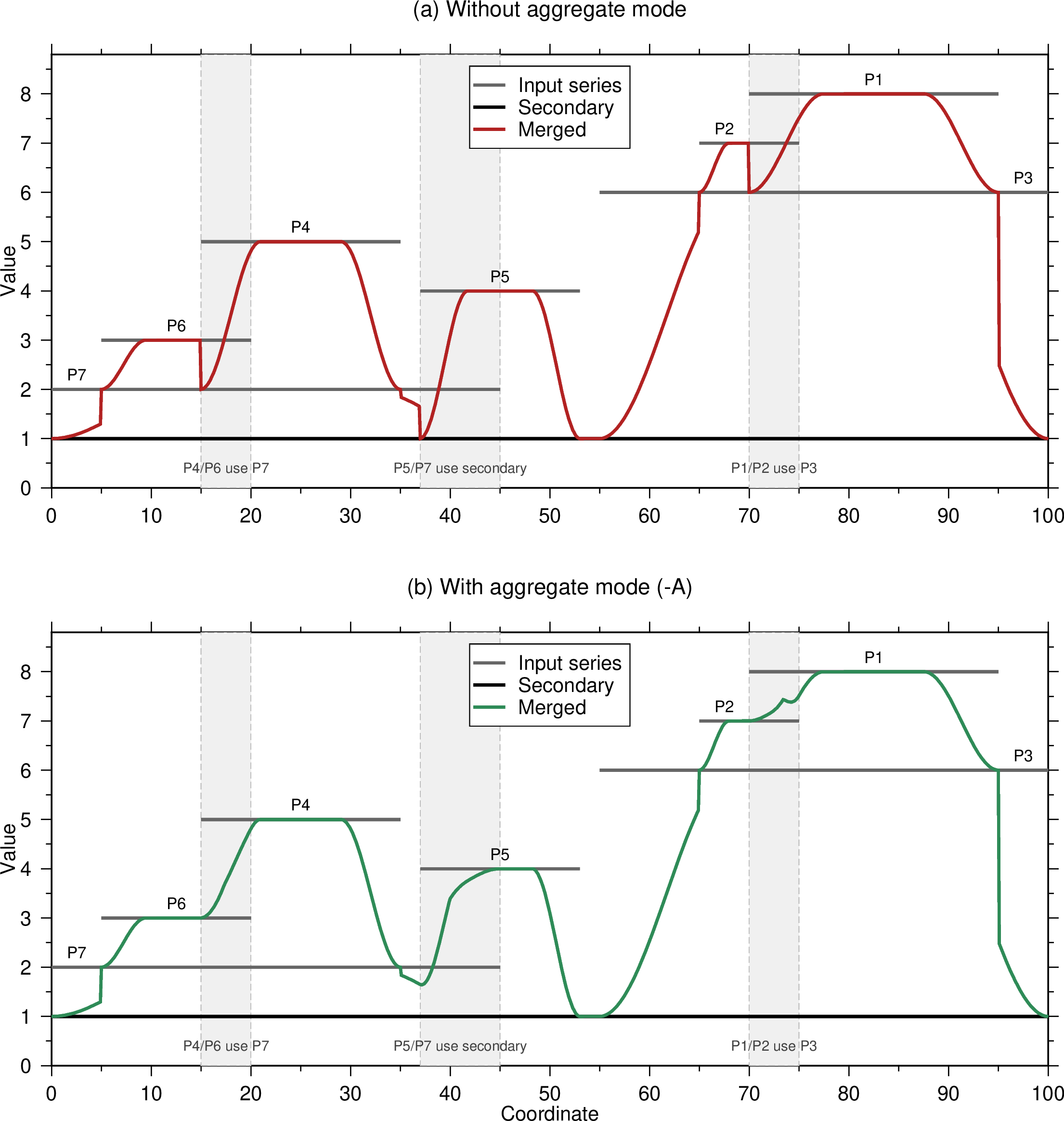

The script verifies full-domain coverage, confirms that aggregation changes
all three intended overlaps, and creates ex08_many_series.png and
ex08_many_series.pdf.
