ex05_multivariable_netcdf
This example merges three variables from two multiparameter NetCDF files. The files use different names for equivalent model parameters:
model1.nc?vp,vs,den model2.nc?p,s,d 20/80 cosine 0.2/0.3
model2.nc?p,s,d - - - -
The source variables are listed in corresponding order. The option
-Fvp,vs,rho names the three output variables, giving the positional mapping
vp <- vp, p
vs <- vs, s
rho <- den, d
The -W option adds the shared variable weight to the NetCDF output. It has
the long name merging weight and units of 1. The script also uses -W+o
to create a NetCDF file containing only the coordinate and weight variables.
The asymmetric taper ratios are 0.2 at the beginning and 0.3 at the end.
Run:
./ex05_multivariable_netcdf.sh

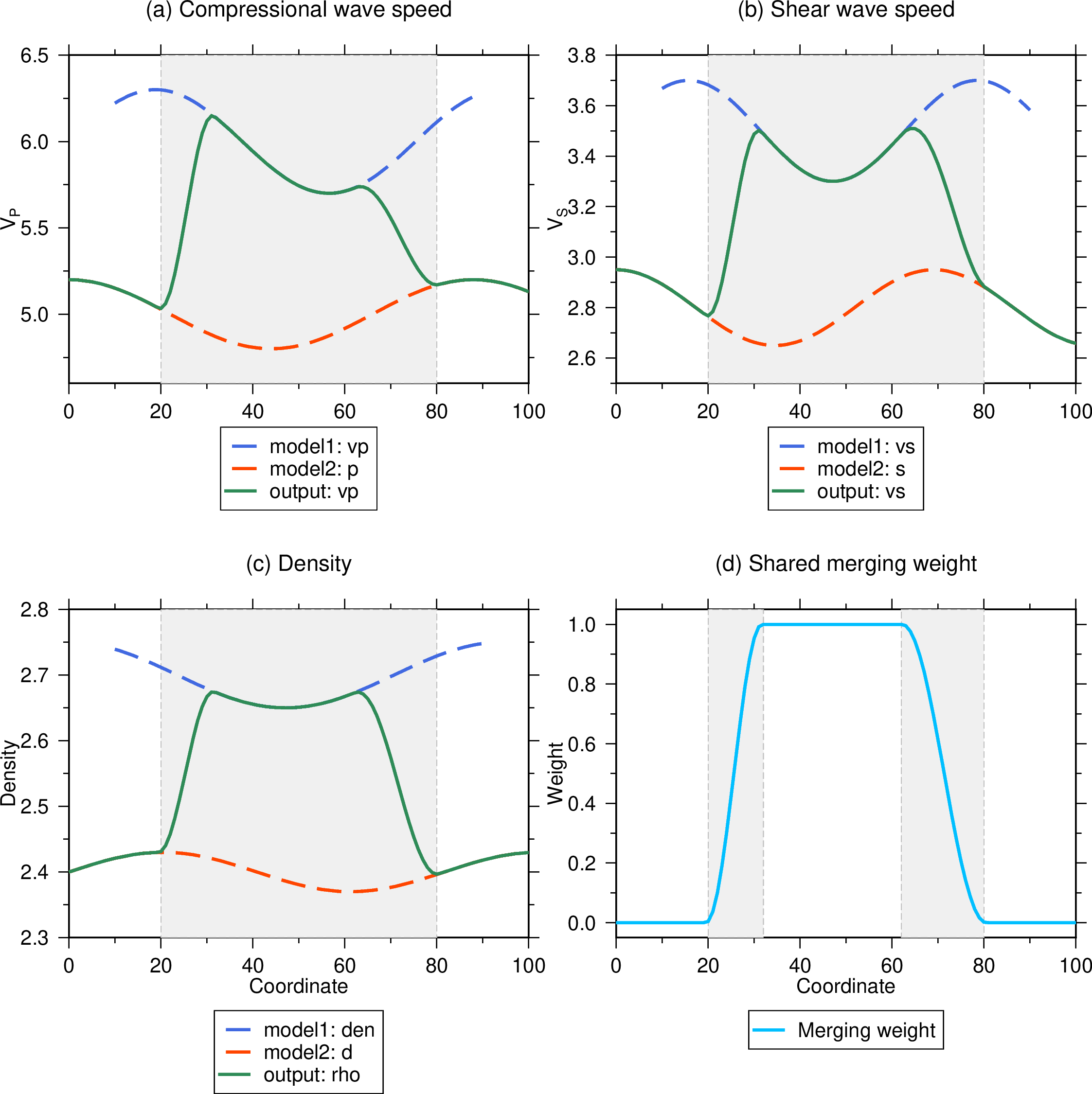

The script verifies the NetCDF variables and weight metadata, then creates
ex05_multivariable_netcdf.png and ex05_multivariable_netcdf.pdf.
