ex04_wus324

This example applies the USGS Vs30 model to the topographic WUS324 Cascadia model. Vp, Vs, and density are modified together over dry land; ocean and other wet columns are left unchanged. The transition begins at the highest finite Vs node in each land column.

The upper model is staged at 50 m vertical spacing. WUS324 velocities are stored in kilometers per second, while density is stored in kilograms per cubic meter. +v1,1,0.001 first converts density to grams per cubic centimeter, and -U1000/1000 performs the Ely, Brocher, and Nafe-Drake relations in SI units while retaining the plotting units in the output.

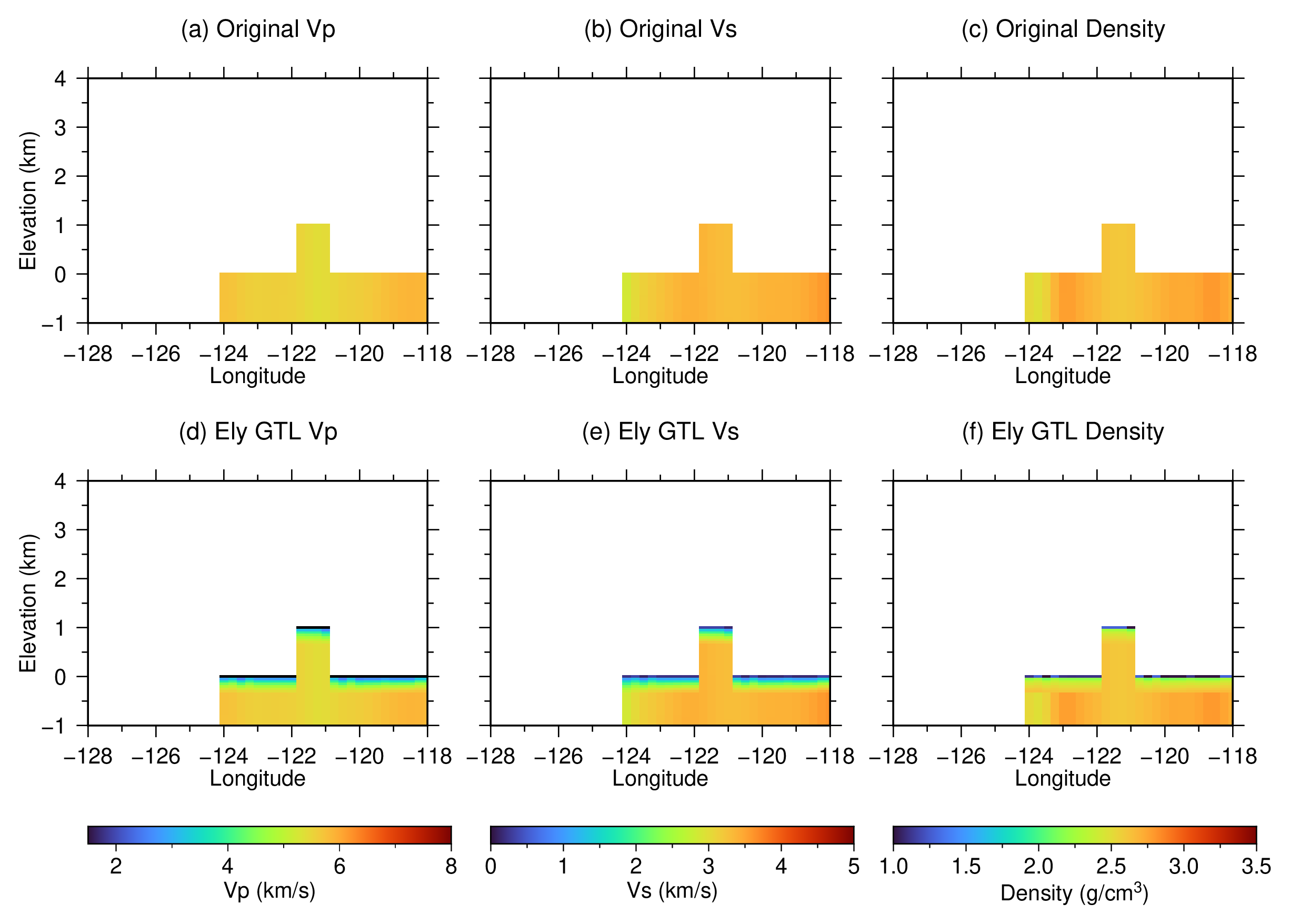

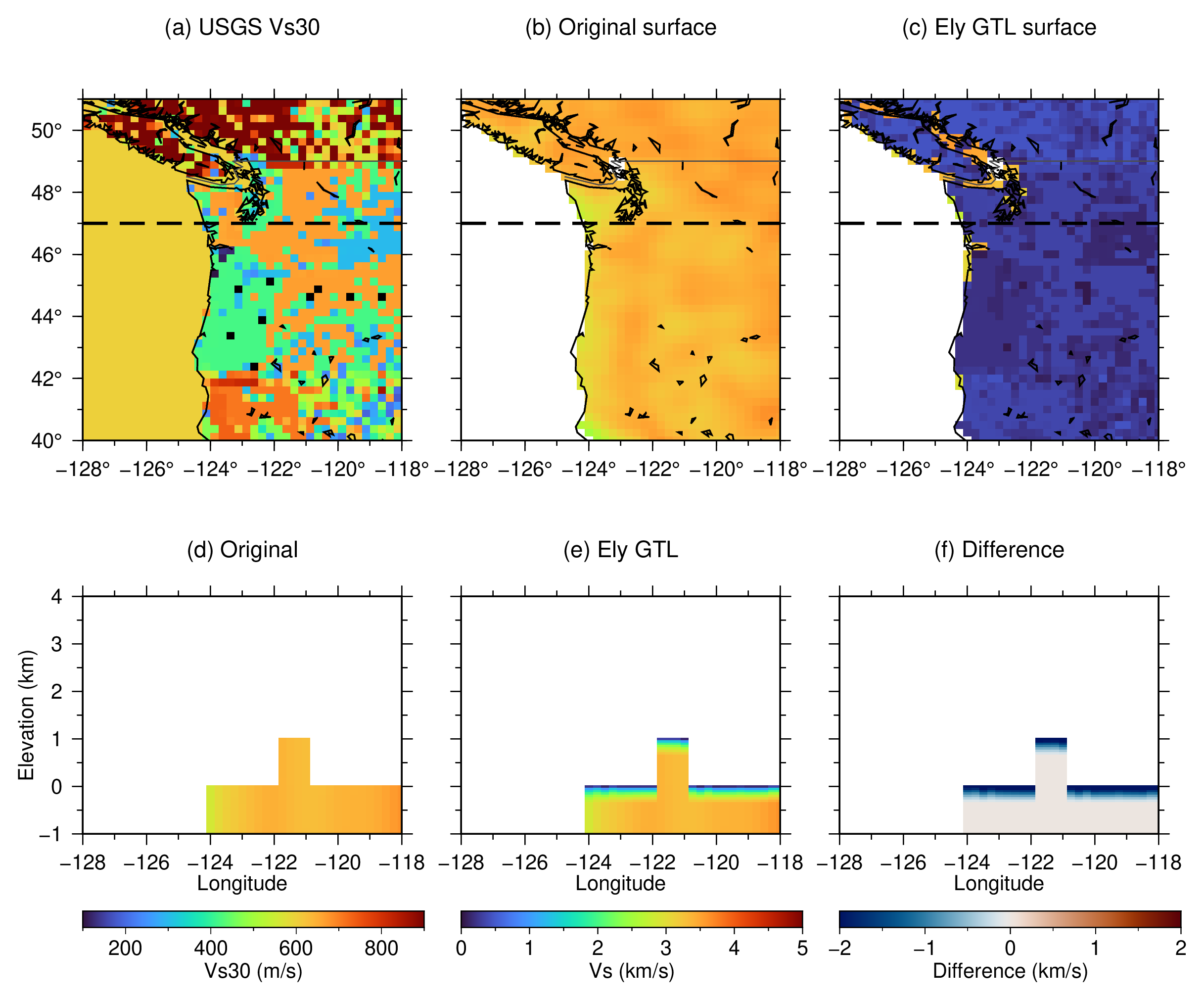

The first figure focuses on Vs. The second compares Vp, Vs, and density along 47 N.

Run:

./ex04_wus324.sh

The script creates:

  • ex04_wus324.png and ex04_wus324.pdf

  • ex04_wus324_parameters.png and ex04_wus324_parameters.pdf

Figures

ex04_wus324 ex04_wus324
