ex02_pnw10_s
This example applies the USGS Global Hybrid Vs30 Mosaic to the Vs-only PNW10-S model. PNW10-S has a flat surface at zero elevation, and GMT’s GSHHG classification prevents the GTL from being applied in oceanic columns.
The upper 2.5 km is interpolated from the native model to 50 m vertical spacing before the default 350 m Ely transition is constructed. The command converts elevation and velocity from kilometers and kilometers per second to the SI units required by the Ely equations while preserving those original units in the output.

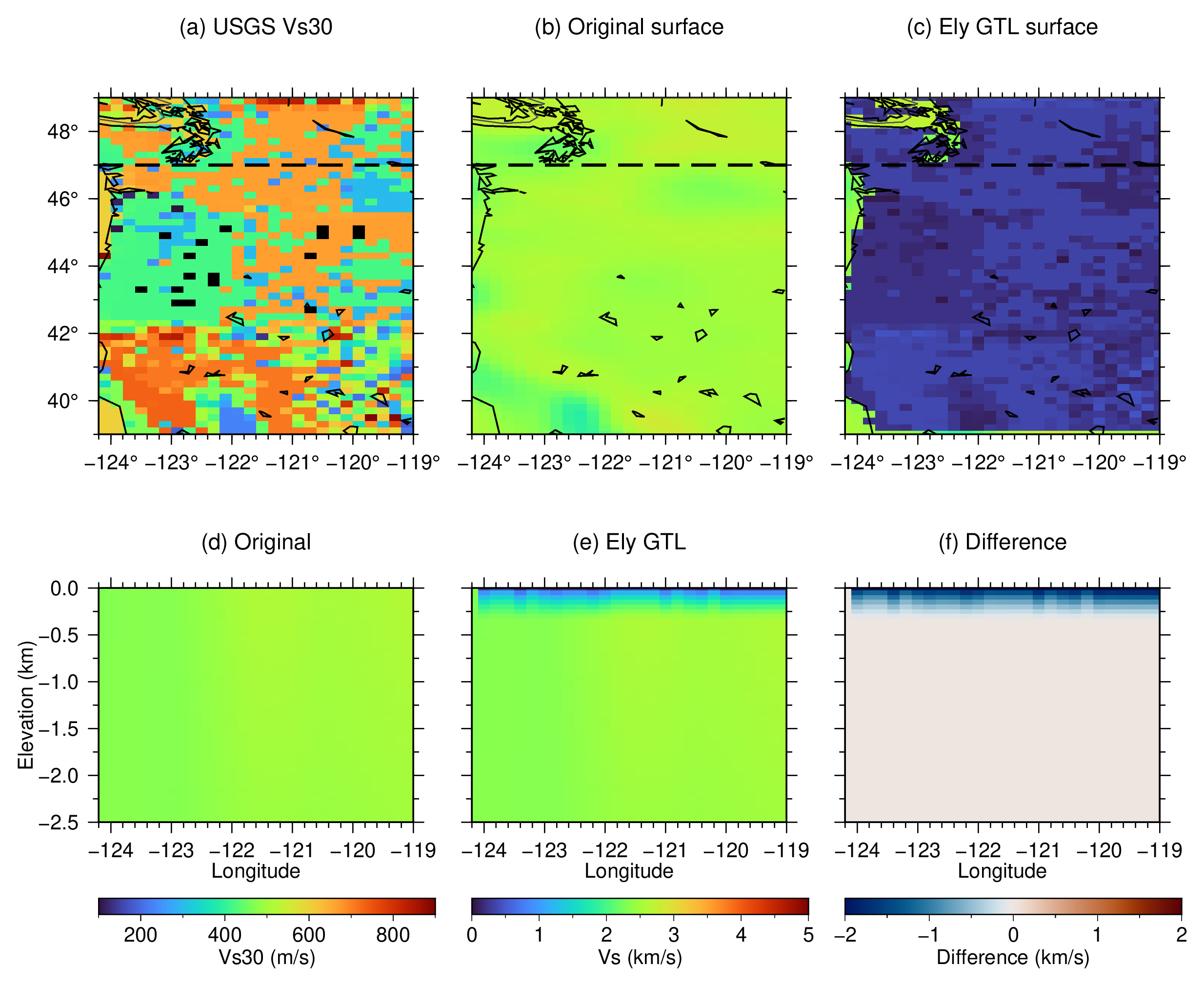

The maps and the 47 N sections compare the original model with the GTL result.
Run:
./ex02_pnw10_s.sh
The script creates:
ex02_pnw10_s.pngex02_pnw10_s.pdf
