C API
The public API is split into focused headers. blend.h remains the umbrella
header for users who want all public declarations.
API Examples
These C API examples show direct use of the public API, from a single 1-D window taper to 2-D and 3-D polygon-supported embeddings.
ex01_api

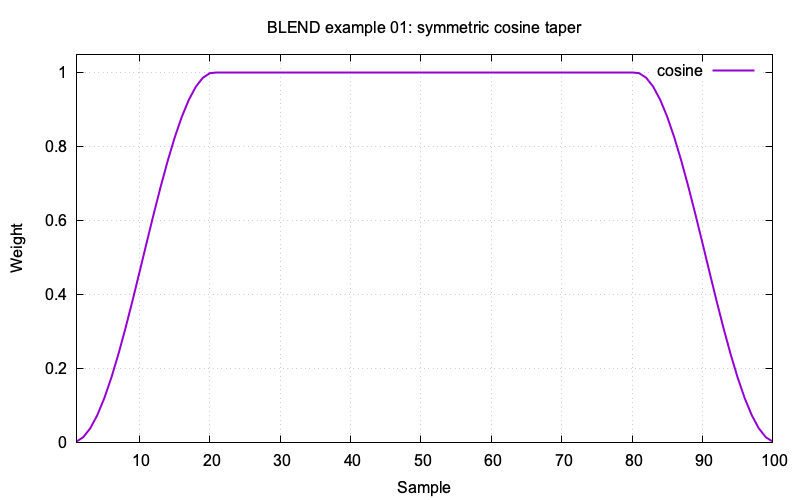

ex01_api evaluates a symmetric 1-D cosine taper.
#include "blend.h"
int main(void)
{
const int n = 100;
const int nmin = n;
const double ratio = 0.2;
const char *filename = "ex01_api.txt";
FILE *fp;
int i;
fp = fopen(filename, "w");
if (fp == NULL) {
perror(filename);
return FAIL;
}
for (i = 1; i <= n; i++) {
double weight = cosine(i, n, n, nmin, ratio, ratio);
fprintf(fp, "%d %.12f\n", i, weight);
}
if (fclose(fp) != 0) {
perror(filename);
return FAIL;
}
return SUCCESS;
}
ex02_api

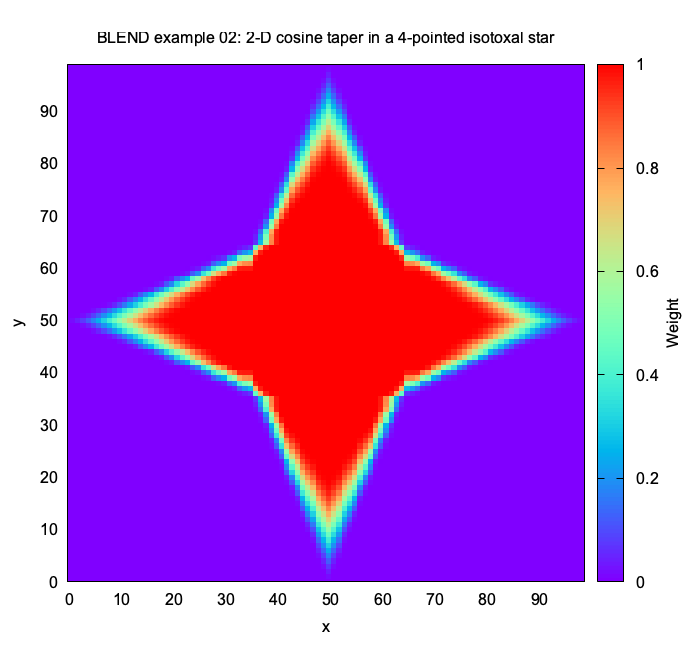

ex02_api evaluates a 2-D cosine taper inside a 4-pointed isotoxal-star
support polygon.
#include "blend.h"
int main(void)
{
const char *filename = "ex02_api.txt";
window data = {0};
permuted_vertex boundary = {0};
polygon support = {0};
FILE *fp;
int x, y;
data.nx = 100;
data.ny = 100;
data.ratio_x1 = 0.2;
data.ratio_x2 = 0.2;
data.ratio_y1 = 0.2;
data.ratio_y2 = 0.2;
data.ratio_z1 = 0.2;
data.ratio_z2 = 0.2;
data.x_function = WFUNC_COSINE;
data.y_function = WFUNC_COSINE;
if (blend_polygon_alloc(&support, 8) != SUCCESS) {
fprintf(stderr, "Could not allocate isotoxal-star vertices.\n");
return FAIL;
}
blend_polygon_set_vertex(&support, 0, 50, 0);
blend_polygon_set_vertex(&support, 1, 65, 35);
blend_polygon_set_vertex(&support, 2, 99, 50);
blend_polygon_set_vertex(&support, 3, 65, 65);
blend_polygon_set_vertex(&support, 4, 50, 99);
blend_polygon_set_vertex(&support, 5, 35, 65);
blend_polygon_set_vertex(&support, 6, 0, 50);
blend_polygon_set_vertex(&support, 7, 35, 35);
if (blend_window_set_polygon(&data, &support) != SUCCESS) {
fprintf(stderr, "Could not assign isotoxal-star vertices.\n");
blend_polygon_free(&support);
return FAIL;
}
if (boundary_assembly(&data, &boundary) != SUCCESS) {
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
fp = fopen(filename, "w");
if (fp == NULL) {
perror(filename);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
for (y = 0; y < data.ny; y++) {
for (x = 0; x < data.nx; x++) {
if (embedding_contribution2d(x, y, &data) != SUCCESS) {
fclose(fp);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
fprintf(fp, "%d %d %.12f\n", x, y, data.contribution);
}
fprintf(fp, "\n");
}
if (fclose(fp) != 0) {
perror(filename);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return SUCCESS;
}
ex03_api

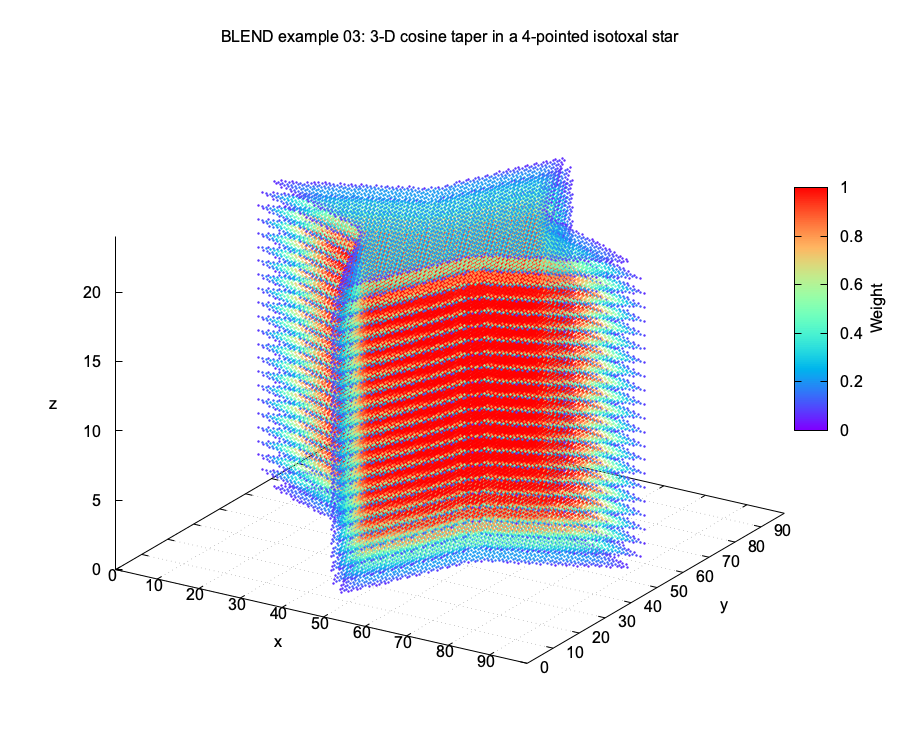

ex03_api extends the same polygon-supported taper into 3-D.
#include "blend.h"
int main(void)
{
const char *filename = "ex03_api.txt";
window data = {0};
permuted_vertex boundary = {0};
polygon support = {0};
FILE *fp;
int x, y, z;
data.nx = 100;
data.ny = 100;
data.nz = 25;
data.ratio_x1 = 0.2;
data.ratio_x2 = 0.2;
data.ratio_y1 = 0.2;
data.ratio_y2 = 0.2;
data.ratio_z1 = 0.2;
data.ratio_z2 = 0.2;
data.x_function = WFUNC_COSINE;
data.y_function = WFUNC_COSINE;
data.z_function = WFUNC_COSINE;
if (blend_polygon_alloc(&support, 8) != SUCCESS) {
fprintf(stderr, "Could not allocate isotoxal-star vertices.\n");
return FAIL;
}
blend_polygon_set_vertex(&support, 0, 50, 0);
blend_polygon_set_vertex(&support, 1, 65, 35);
blend_polygon_set_vertex(&support, 2, 99, 50);
blend_polygon_set_vertex(&support, 3, 65, 65);
blend_polygon_set_vertex(&support, 4, 50, 99);
blend_polygon_set_vertex(&support, 5, 35, 65);
blend_polygon_set_vertex(&support, 6, 0, 50);
blend_polygon_set_vertex(&support, 7, 35, 35);
if (blend_window_set_polygon(&data, &support) != SUCCESS) {
fprintf(stderr, "Could not assign isotoxal-star vertices.\n");
blend_polygon_free(&support);
return FAIL;
}
if (boundary_assembly(&data, &boundary) != SUCCESS) {
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
fp = fopen(filename, "w");
if (fp == NULL) {
perror(filename);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
for (z = 0; z < data.nz; z++) {
for (y = 0; y < data.ny; y++) {
for (x = 0; x < data.nx; x++) {
if (embedding_contribution3d(x, y, z, &data) != SUCCESS) {
fclose(fp);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
fprintf(fp, "%d %d %d %.12f\n", x, y, z, data.contribution);
}
fprintf(fp, "\n");
}
fprintf(fp, "\n");
}
if (fclose(fp) != 0) {
perror(filename);
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return FAIL;
}
blend_window_clear_polygon(&data);
blend_polygon_free(&support);
return SUCCESS;
}
ex04_api

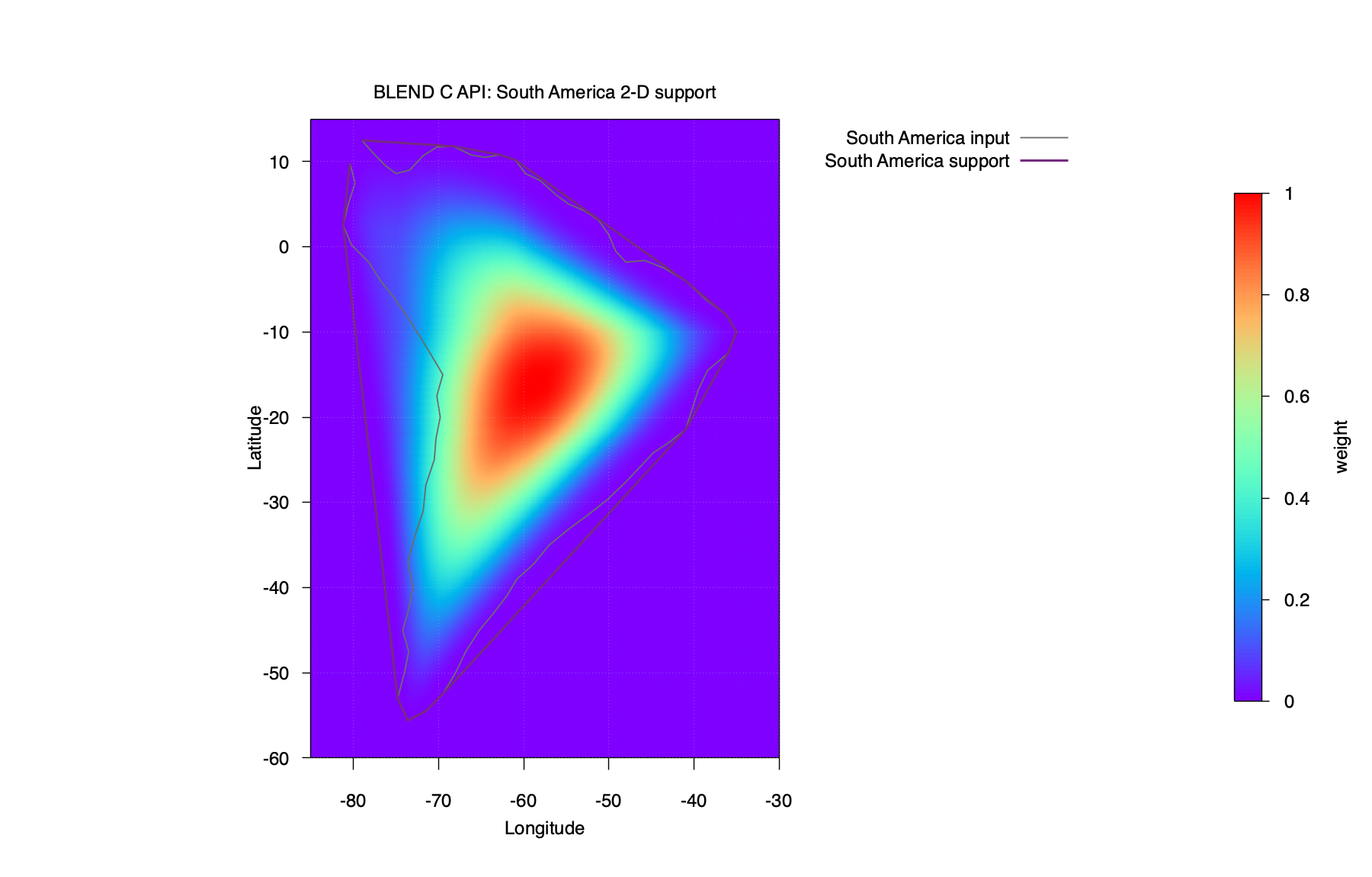

ex04_api reads the South America polygon used by ex03_window2d,
checks whether the grid-snapped polygon is strictly xy-monotone, converts it
with the strict xy-monotone envelope method used by -ME, and then builds a
2-D cosine window from the converted support.
#include "blend.h"
#include <limits.h>
#define REGION_XMIN -85.0
#define REGION_XMAX -30.0
#define REGION_YMIN -60.0
#define REGION_YMAX 15.0
#define INCREMENT 0.1
static int grid_size(double min, double max, double increment, int *n)
{
double intervals = floor((max - min) / increment + 0.5);
if (intervals < 1.0 || intervals > (double)(INT_MAX - 1)) {
return FAIL;
}
*n = (int)intervals + 1;
return SUCCESS;
}
static int output_axis_size(double min, double max, double increment, int *n)
{
double intervals_exact = (max - min) / increment;
double intervals_nearest = floor(intervals_exact + 0.5);
if (fabs(intervals_exact - intervals_nearest) > 1.0e-9) {
return FAIL;
}
*n = (int)intervals_nearest + 1;
return SUCCESS;
}
static double snap_local_coordinate(double value, int max_index)
{
double snapped = floor(value + 0.5);
if (fabs(value) < 1.0e-10) {
snapped = 0.0;
}
else if (fabs(value - (double)max_index) < 1.0e-10) {
snapped = (double)max_index;
}
if (snapped < 0.0) {
return 0.0;
}
if (snapped > (double)max_index) {
return (double)max_index;
}
return snapped;
}
static int polygon_bounds(const polygon *poly, double *xmin, double *xmax,
double *ymin, double *ymax)
{
size_t i;
if (poly == NULL || poly->vertices == NULL || poly->n_vertices == 0) {
return FAIL;
}
*xmin = poly->vertices[0].x;
*xmax = poly->vertices[0].x;
*ymin = poly->vertices[0].y;
*ymax = poly->vertices[0].y;
for (i = 0; i < poly->n_vertices; i++) {
double x = poly->vertices[i].x;
double y = poly->vertices[i].y;
if (x < REGION_XMIN || x > REGION_XMAX || y < REGION_YMIN || y > REGION_YMAX) {
return FAIL;
}
if (x < *xmin) *xmin = x;
if (x > *xmax) *xmax = x;
if (y < *ymin) *ymin = y;
if (y > *ymax) *ymax = y;
}
return SUCCESS;
}
static int map_polygon_to_local_grid(const polygon *src,
double xmin, double xmax,
double ymin, double ymax,
int nx, int ny, polygon *dst)
{
polygon tmp = {0};
size_t i;
if (blend_polygon_alloc(&tmp, src->n_vertices) != SUCCESS) {
return FAIL;
}
for (i = 0; i < src->n_vertices; i++) {
double x = (src->vertices[i].x - xmin) * (double)(nx - 1) / (xmax - xmin);
double y = (src->vertices[i].y - ymin) * (double)(ny - 1) / (ymax - ymin);
if (blend_polygon_set_vertex(&tmp, i,
snap_local_coordinate(x, nx - 1),
snap_local_coordinate(y, ny - 1)) != SUCCESS) {
blend_polygon_free(&tmp);
return FAIL;
}
}
if (blend_polygon_validate(&tmp) != SUCCESS) {
blend_polygon_free(&tmp);
return FAIL;
}
blend_polygon_free(dst);
dst->n_vertices = tmp.n_vertices;
dst->vertices = tmp.vertices;
return SUCCESS;
}
static int map_polygon_to_real_coordinates(const polygon *src,
double xmin, double xmax,
double ymin, double ymax,
int nx, int ny, polygon *dst)
{
polygon tmp = {0};
size_t i;
if (blend_polygon_alloc(&tmp, src->n_vertices) != SUCCESS) {
return FAIL;
}
for (i = 0; i < src->n_vertices; i++) {
double x = xmin + src->vertices[i].x * (xmax - xmin) / (double)(nx - 1);
double y = ymin + src->vertices[i].y * (ymax - ymin) / (double)(ny - 1);
if (blend_polygon_set_vertex(&tmp, i, x, y) != SUCCESS) {
blend_polygon_free(&tmp);
return FAIL;
}
}
if (blend_polygon_validate(&tmp) != SUCCESS) {
blend_polygon_free(&tmp);
return FAIL;
}
blend_polygon_free(dst);
dst->n_vertices = tmp.n_vertices;
dst->vertices = tmp.vertices;
return SUCCESS;
}
static int point_on_segment(double x, double y, const vertex *a, const vertex *b)
{
double cross = (x - a->x) * (b->y - a->y) - (y - a->y) * (b->x - a->x);
double dot;
if (fabs(cross) > 1.0e-10) {
return 0;
}
dot = (x - a->x) * (x - b->x) + (y - a->y) * (y - b->y);
return dot <= 1.0e-10;
}
static int point_in_polygon(double x, double y, const polygon *poly)
{
int inside = 0;
size_t i, j;
for (i = 0, j = poly->n_vertices - 1; i < poly->n_vertices; j = i++) {
const vertex *vi = &poly->vertices[i];
const vertex *vj = &poly->vertices[j];
if (point_on_segment(x, y, vj, vi)) {
return 1;
}
if (((vi->y > y) != (vj->y > y)) &&
(x < (vj->x - vi->x) * (y - vi->y) / (vj->y - vi->y) + vi->x)) {
inside = !inside;
}
}
return inside;
}
static int support_grid_weight(window *data, int ix, int iy, double *weight)
{
if (ix < 0 || iy < 0 || ix >= data->nx || iy >= data->ny) {
*weight = 0.0;
return SUCCESS;
}
if (embedding_contribution2d(ix, iy, data) != SUCCESS) {
return FAIL;
}
*weight = data->contribution;
return SUCCESS;
}
static int support_weight(double x, double y, window *data, const polygon *support,
double xmin, double xmax, double ymin, double ymax,
double *weight)
{
double sx, sy;
double w00, w10, w01, w11;
int ix0, iy0, ix1, iy1;
if (x < xmin || x > xmax || y < ymin || y > ymax ||
!point_in_polygon(x, y, support)) {
*weight = 0.0;
return SUCCESS;
}
sx = (x - xmin) * (double)(data->nx - 1) / (xmax - xmin);
sy = (y - ymin) * (double)(data->ny - 1) / (ymax - ymin);
ix0 = (int)floor(sx);
iy0 = (int)floor(sy);
if (ix0 < 0) ix0 = 0;
if (iy0 < 0) iy0 = 0;
if (ix0 >= data->nx - 1) ix0 = data->nx - 1;
if (iy0 >= data->ny - 1) iy0 = data->ny - 1;
ix1 = ix0 < data->nx - 1 ? ix0 + 1 : ix0;
iy1 = iy0 < data->ny - 1 ? iy0 + 1 : iy0;
if (support_grid_weight(data, ix0, iy0, &w00) != SUCCESS ||
support_grid_weight(data, ix1, iy0, &w10) != SUCCESS ||
support_grid_weight(data, ix0, iy1, &w01) != SUCCESS ||
support_grid_weight(data, ix1, iy1, &w11) != SUCCESS) {
return FAIL;
}
if (ix0 == ix1 && iy0 == iy1) {
*weight = w00;
return SUCCESS;
}
if (ix0 == ix1) {
return interpolate_linear((double)iy0, w00, (double)iy1, w01, sy, weight);
}
if (iy0 == iy1) {
return interpolate_linear((double)ix0, w00, (double)ix1, w10, sx, weight);
}
return interpolate_bilinear((double)ix0, (double)ix1, (double)iy0, (double)iy1,
w00, w10, w01, w11, sx, sy, weight);
}
int main(void)
{
const char *polygon_path = "south_america.txt";
const char *grid_path = "ex04_api_grid.txt";
polygon input = {0};
polygon local_input = {0};
polygon local_support = {0};
polygon support = {0};
window data = {0};
permuted_vertex boundary = {0};
FILE *fp = NULL;
double xmin, xmax, ymin, ymax;
int nx, ny, out_nx, out_ny;
int is_strict = 0;
int ix, iy;
int status = FAIL;
if (blend_polygon_read(polygon_path, &input) != SUCCESS ||
blend_polygon_validate(&input) != SUCCESS ||
polygon_bounds(&input, &xmin, &xmax, &ymin, &ymax) != SUCCESS ||
grid_size(xmin, xmax, INCREMENT, &nx) != SUCCESS ||
grid_size(ymin, ymax, INCREMENT, &ny) != SUCCESS ||
map_polygon_to_local_grid(&input, xmin, xmax, ymin, ymax, nx, ny,
&local_input) != SUCCESS) {
goto cleanup;
}
if (blend_polygon_is_xy_monotone_strict(&local_input, &is_strict) != SUCCESS) {
goto cleanup;
}
if (is_strict) {
if (blend_polygon_copy(&local_input, &local_support) != SUCCESS) {
goto cleanup;
}
}
else if (blend_polygon_xy_monotone_envelope_strict(&local_input,
&local_support) != SUCCESS) {
goto cleanup;
}
if (blend_polygon_is_xy_monotone_strict(&local_support, &is_strict) != SUCCESS ||
!is_strict ||
map_polygon_to_real_coordinates(&local_support, xmin, xmax, ymin, ymax,
nx, ny, &support) != SUCCESS ||
blend_polygon_write("south_america_monotone.txt", &support) != SUCCESS) {
goto cleanup;
}
data.nx = nx;
data.ny = ny;
data.ratio_x1 = 0.49;
data.ratio_x2 = 0.49;
data.ratio_y1 = 0.49;
data.ratio_y2 = 0.49;
data.x_function = WFUNC_COSINE;
data.y_function = WFUNC_COSINE;
if (blend_window_set_polygon(&data, &local_support) != SUCCESS ||
boundary_assembly(&data, &boundary) != SUCCESS ||
output_axis_size(REGION_XMIN, REGION_XMAX, INCREMENT, &out_nx) != SUCCESS ||
output_axis_size(REGION_YMIN, REGION_YMAX, INCREMENT, &out_ny) != SUCCESS) {
goto cleanup;
}
fp = fopen(grid_path, "w");
if (fp == NULL) {
perror(grid_path);
goto cleanup;
}
for (iy = 0; iy < out_ny; iy++) {
double y = REGION_YMIN + (double)iy * INCREMENT;
for (ix = 0; ix < out_nx; ix++) {
double x = REGION_XMIN + (double)ix * INCREMENT;
double weight;
if (support_weight(x, y, &data, &support, xmin, xmax, ymin, ymax,
&weight) != SUCCESS ||
fprintf(fp, "%.12g %.12g %.12f\n", x, y, weight) < 0) {
goto cleanup;
}
}
if (fprintf(fp, "\n") < 0) {
goto cleanup;
}
}
if (fclose(fp) != 0) {
fp = NULL;
perror(grid_path);
goto cleanup;
}
fp = NULL;
status = SUCCESS;
cleanup:
if (fp != NULL) {
fclose(fp);
}
blend_permuted_vertex_free(&boundary);
blend_window_boundary_clear(&data);
blend_polygon_free(&support);
blend_polygon_free(&local_support);
blend_polygon_free(&local_input);
blend_polygon_free(&input);
return status;
}
