ex03_support_and_windows
This example tapers a three-dimensional field inside a four-pointed
isotoxal-star horizontal support extruded through the interval z = 20/80.
It compares two window combinations with taper ratios of 0.3 along x, y,
and z:
cosine/cosine/cosine
Planck taper/Welch/Kaiser

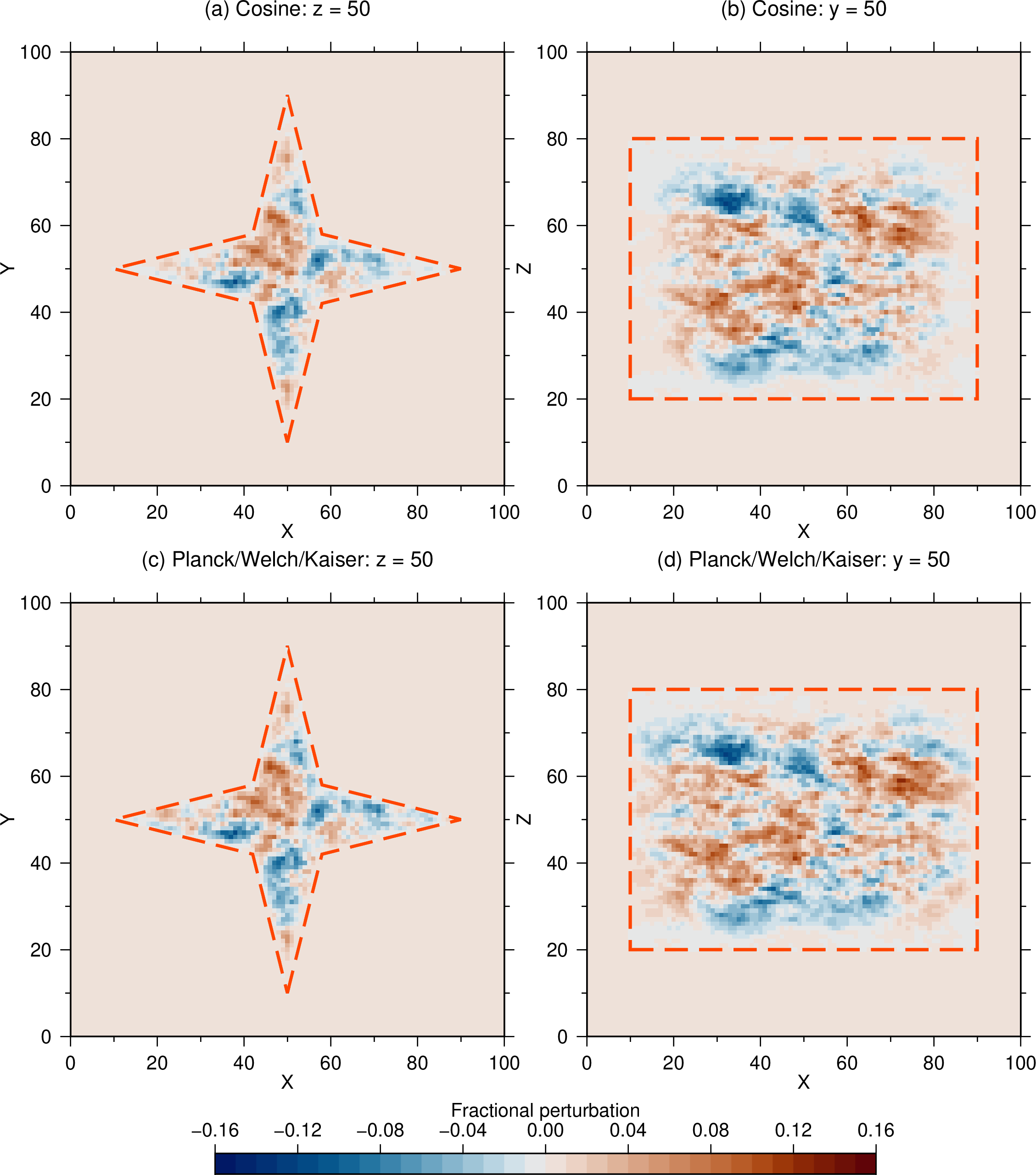

The figure displays horizontal heterogeneity slices at z = 50 and vertical
heterogeneity slices at y = 50. Both window combinations use the same random
realization. Dashed outlines mark the polygon and vertical support boundaries.
Run:
./ex03_support_and_windows.sh
The script creates ex03_support_and_windows.png and
ex03_support_and_windows.pdf.
