ex07_multiple_parameters
This example applies independent, field-specific heterogeneities to vp,
vs, and rho in a text model. Shared defaults are overridden by
parameter name, and -Q73+i gives each parameter an independent
realization.
The parameter settings are:
vp: standard deviation 0.025 and correlation length 12vs: standard deviation 0.05 and correlation length 6rho: standard deviation 0.015 and correlation length 3

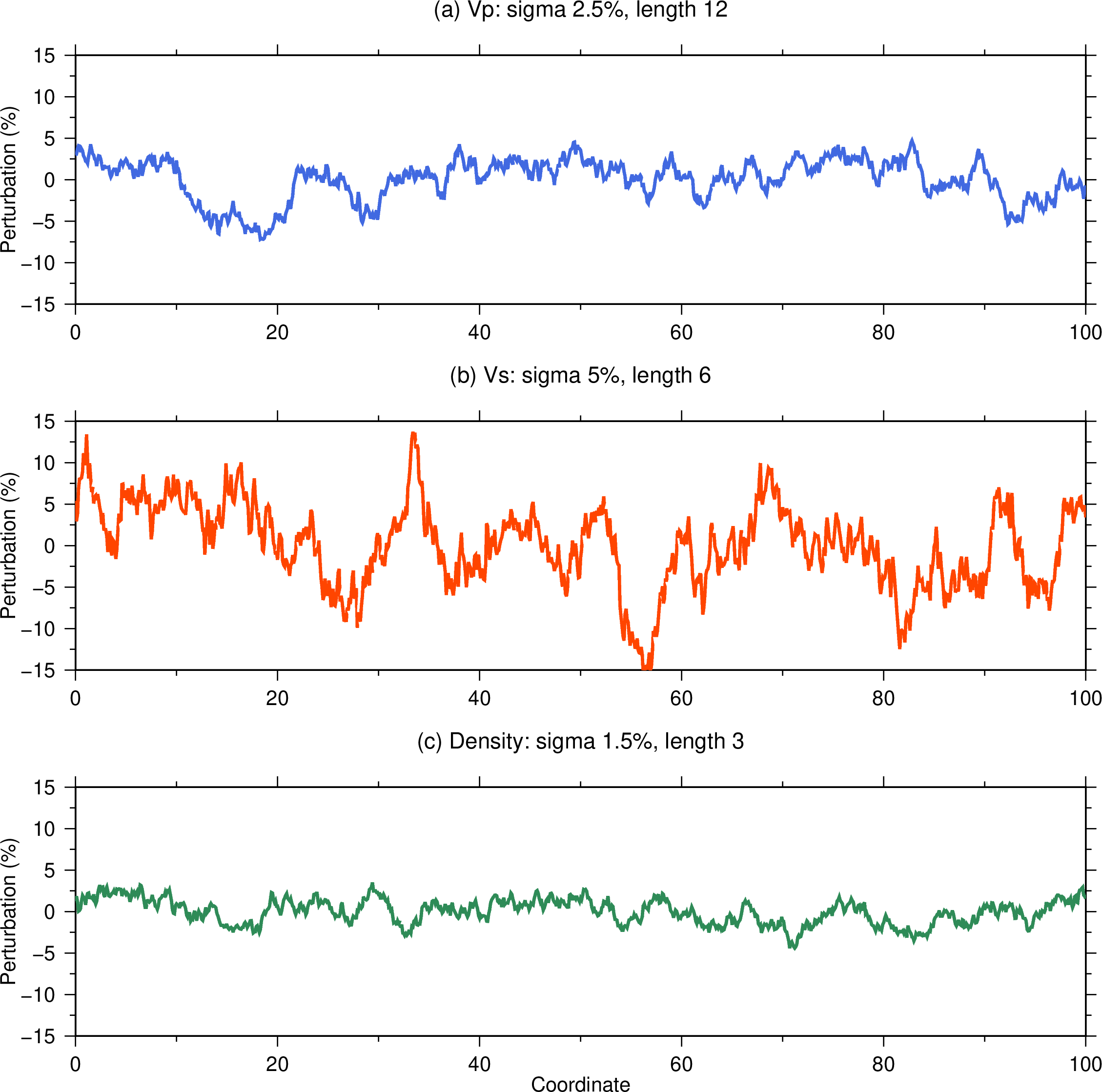

The three panels plot the resulting relative perturbations as percentages.
Run:
./ex07_multiple_parameters.sh
The script creates ex07_multiple_parameters.png and
ex07_multiple_parameters.pdf.
Figures
